起源

2023年因緣際會，時常跟一位我很尊敬的前輩混在一起 :P 那時候三不五時就會聽他提到pfSense這套軟體防火牆和他家「機房」的各種大小事，非常酷！我也想玩玩看！其實我一直以來都很想要有個Lab，可長期用來測試或跑些有的沒的，雖然透過IaC再加上一系列的自動化也能輕鬆一鍵在雲端佈署想要的實驗環境，但我就是很怕會忘了刪掉。

一開始想省錢，只靠一台小PC插滿USB網卡跑VM，其實這樣窮酸的作法絕對可行，前提是那台機器要夠穩。有段時間我每隔一到兩天就會遇到kernel噴網卡相關的錯誤，然後就是全家沒網路可用、電視不能看、掃地機器人叫不動，幾次下來我真的不敢了…

後來我把pfSense安裝在專門用來當作路由器的特製小PC(Protectli Vault FW4B)，到目前為止跑了兩年多，pfSense也升了好幾個版本，完全沒出過事。原本的小PC(Intel NUC)變成主要Lab繼續用KVM Libvirt跑K8S。

人沒事就是會找事做。不曉得為什麼，有段時間我就很想把樹莓派疊在一起跑K8S。然後就買了一台樹莓派5(8G)，有了一台覺得該買第二台，有了兩台又覺得至少要四台，有了四台又覺得其實六台才是最完美的…最後理智勝出，我只有四台。再來就是規劃新的Lab，也需要把原本跑在amd64架構上的容器遷移到arm64架構，聽起來感覺沒什麼，但其實過程中遇到不少坑，之後看有沒有機會再聊這部份！

我知道目前Lab還有很多地方可以再調整到更好，但我現在真的只有在閒暇之餘或心血來潮時才有動力…偶爾也會有念頭想把它們通通都關掉，覺得好像沒什麼價值多浪費電而已(每月20~25kWh)。那我就趁還沒關掉前分享一下目前Lab的架構，也算是替自己紀錄，希望未來能有動力分享更多。

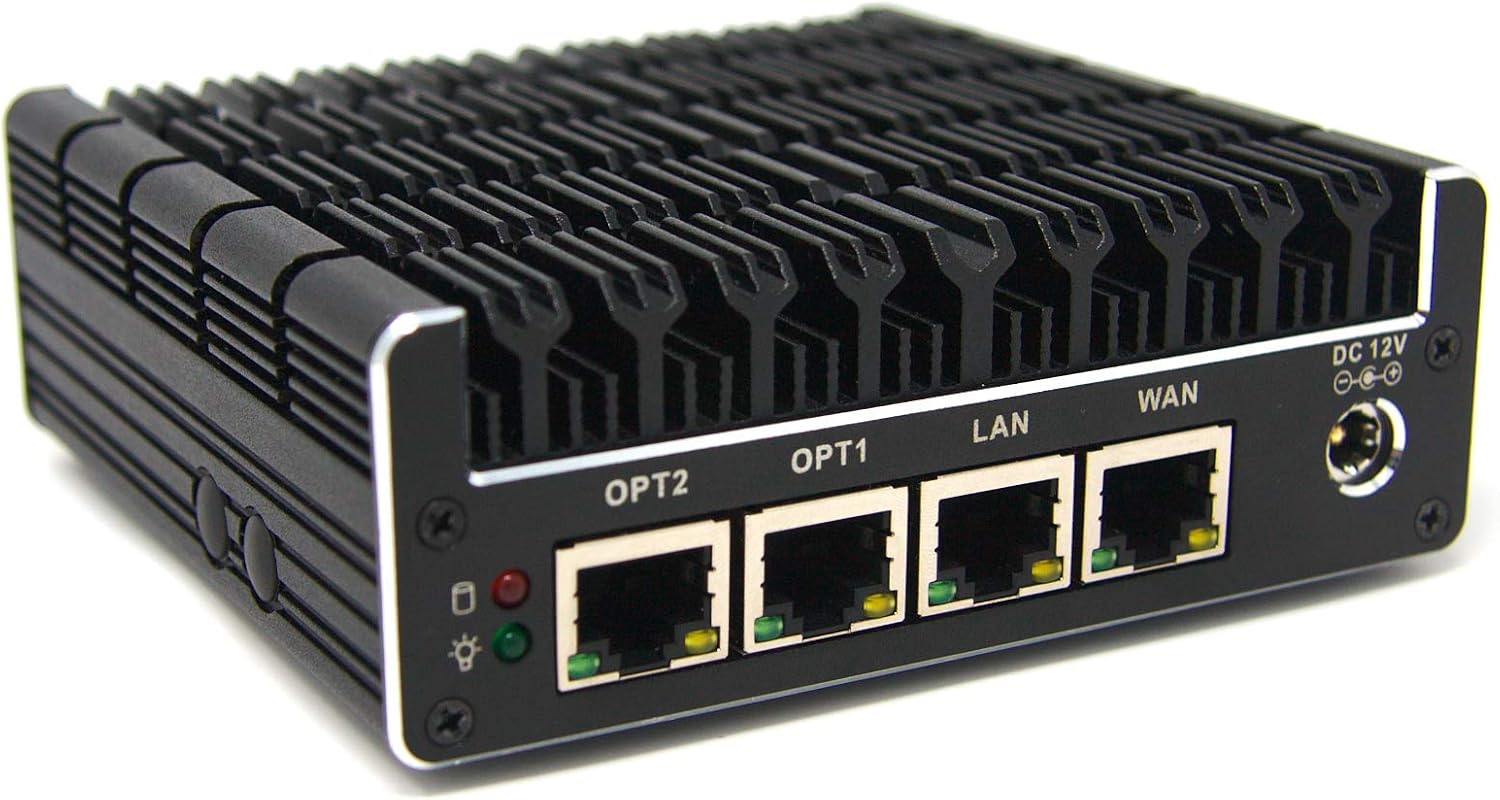

FProtectli Vault FW4B

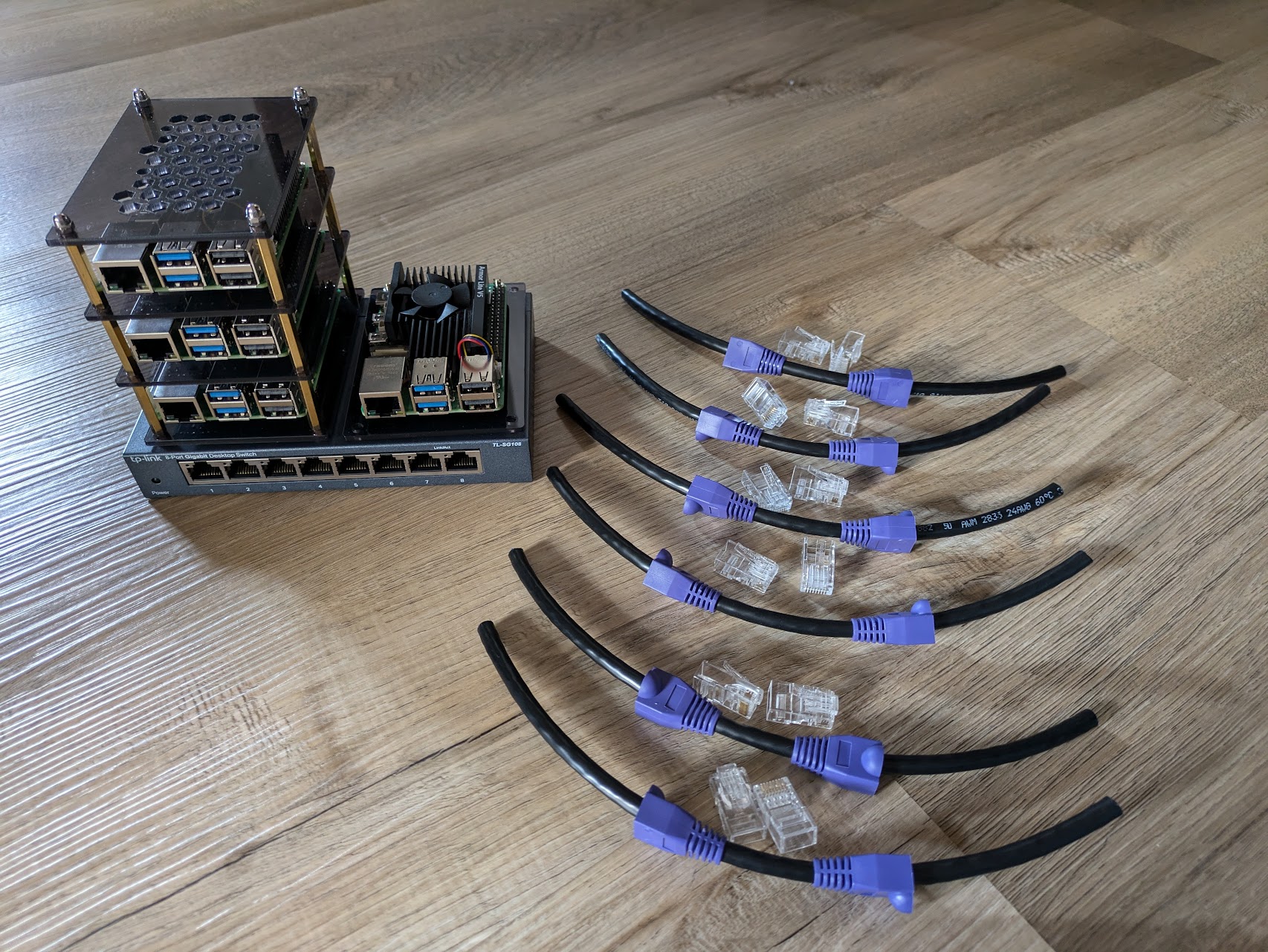

Raspberry Pi Cluster

The homelab in living room.

對外服務

  ---
config:
  theme: 'base'
  themeVariables:
    fontSize: 20px
---
flowchart TD
  INTERNET[🌐 Internet] ==> HINET_ROUTER["📞 HiNet Router (Bridge Mode)"]
  HINET_ROUTER ==> PF_ROUTER[🧱 pfSense Firewall]

  PF_ROUTER --- LAN[🏠 LAN 192.168.X.0/24]
  PF_ROUTER == NAT ==> LAB1[🧪 LAB 1 192.168.Y.0/24]
  PF_ROUTER --- LAB2[🧪 LAB 2 192.168.Z.0/24]

  LAN --- WIFI[🛜 WIFI]
  LAN --- TV[📺 TV]
  LAN --- PC[🖥️ PC]

  LAB1 --- PI_CP[🍓 Raspberry Pi<br/> Control Plane]
  LAB1 ==> PI_NO[🍓 Raspberry Pi<br/> Nodes]

  LAB2 --- PLAYGROUND[🖥️ Mini PC<br/> KVM - Libvirt</br> Playground]

  subgraph "☸️ K8S"
    PI_CP
    PI_NO ==> EIGW["🚪 External Ingress Gateway"]
    EIGW ==> Willyhutw["🔒 Personal Blog</br>(https://willyhu.tw)"]
  end

Hightlights:

  • 防火牆對外只開 TCP: 80, 443.
  • 防火牆 (Public IP) 與 exteral-ingress-gateway (Private IP) NAT.
  • PersonalBlog’s Gateway 指向(label selector) exteral-ingress-gateway.
  • Cert-manager + Let’s encrypt certificate + https redirect to PersonalBlog’s Gateway.
  • Cloudflare DNS託管 + CDN, 避免對外IP暴露.

內部服務

  ---
config:
  theme: 'base'
  themeVariables:
    fontSize: 20px
---
flowchart TD
  PF_ROUTER[🧱 pfSense Firewall]

  PC[🖥️ PC - Willy Hu] ==> LAN
  LAN[🏠 LAN 192.168.X.0/24] ==> PF_ROUTER
  PF_ROUTER ==> LAB1[🧪 LAB 1 192.168.Y.0/24]

  LAB1 --- PI_CP[🍓 Raspberry Pi<br/> Control Plane]
  LAB1 ==> PI_NO[🍓 Raspberry Pi<br/> Nodes]

  subgraph "☸️ K8S"
    PI_CP

    PI_NO ==> IIGW[🚪 Internal Ingress Gateway]

    IIGW ==> Argocd[🔒 ArgoCD</br>argocd.willyhu.tw]
    IIGW ==> Grafana[🔒 Grafana</br>grafana.willyhu.tw]
    IIGW ==> Prometheus[🔒 Prometheus</br>prometheus.willyhu.tw]
    IIGW ==> Loki[🔒 Loki</br>loki.willyhu.tw]
    IIGW ==> Kiali[🔒 Kiali</br>kiali.willyhu.tw]
  end

Hightlights:

  • 防火牆規則:
    • LAN與所有LABs皆隔離不能互相訪問.
    • 除了我之外 (DHCP Static Mappings).
  • InternalServices Gateway 指向(label selector) internal-ingress-gateway.
  • Cert-manager + Let’s encrypt certificate + https redirect to InternalServices Gateway.
  • Proper Gateway/VirtualService allowing host for InternalServices.
  • 防火牆內部DNS(resolver) host override.
    • argocd.willyhu.tw => internal-ingress-gateway’s privete ip (192.168.12.X)
    • grafana.willyhu.tw => internal-ingress-gateway’s privete ip (192.168.12.X)
    • …

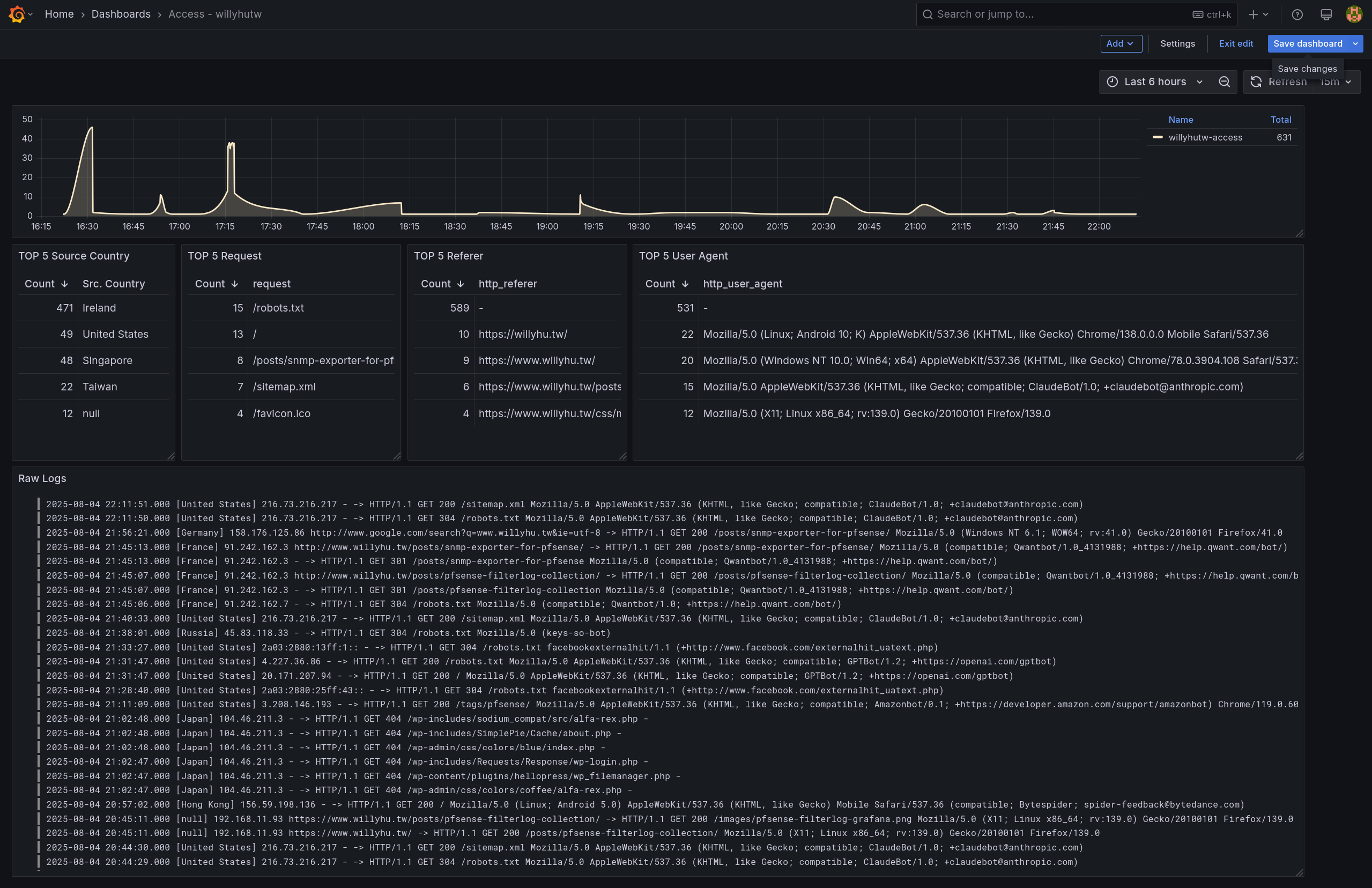

Data ETL Pipeline

  ---
config:
  theme: 'base'
  themeVariables:
    fontSize: 20px
---
flowchart
  PF_ROUTER[🧱 pfSense Firewall]

  PF_ROUTER ==> DataEntry

  SnmpExporter ==> PF_ROUTER
  Prometheus ==> SnmpExporter

  %% K8S Cluster
  subgraph "☸️ K8S"
    SnmpExporter[SNMP Exporter]
    Prometheus[Prometheus]

    DataEntry[FLB Input - </br> UDP Server]
    DataFilterPfsense[FLB Filter - </br> pfsense_log_parser]

    DataTail["FLB Input - </br> Tail (DaemonSet)"]
    DataFilterWillyhutw[FLB Filter - </br> willyhutw_log_parser]

    DataOutputLoki[FLB Output - </br> Loki]

    Loki[Loki]

    DataEntry ==> DataFilterPfsense
    DataFilterPfsense ==> DataOutputLoki

    DataTail ==> DataFilterWillyhutw
    DataFilterWillyhutw ==> DataOutputLoki

    DataOutputLoki ==> Loki
  end

Hightlights:
